The DP female-to-DP female adapter is a product with clear positioning and stable demand. Its function may seem simple – connecting two DP male cables together, but in practical engineering and daily use, it addresses high-frequency pain points such as “insufficient cable length” or “incorrect interface position”. The following analysis is based on product features and core usage scenarios.

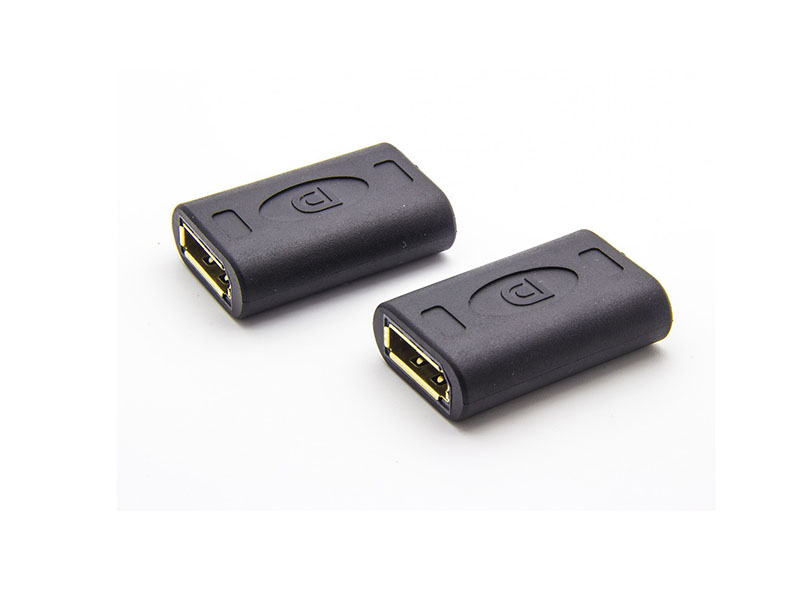

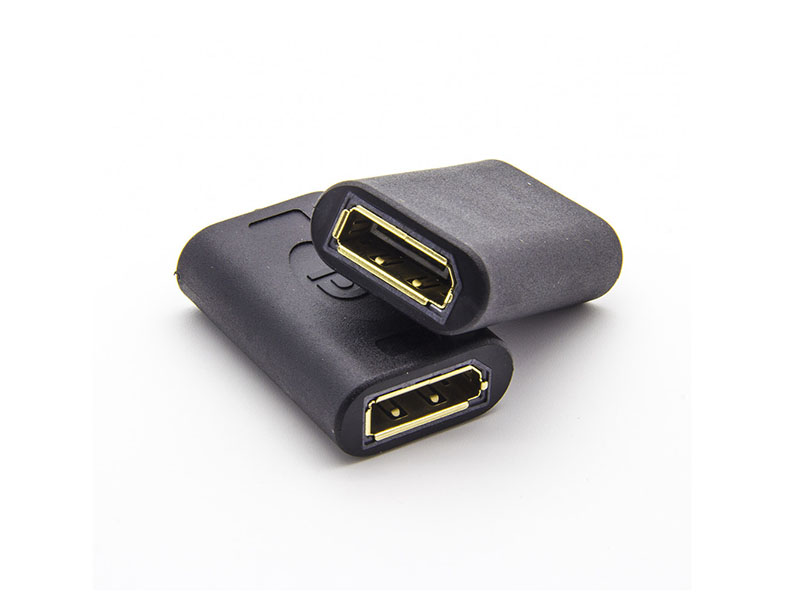

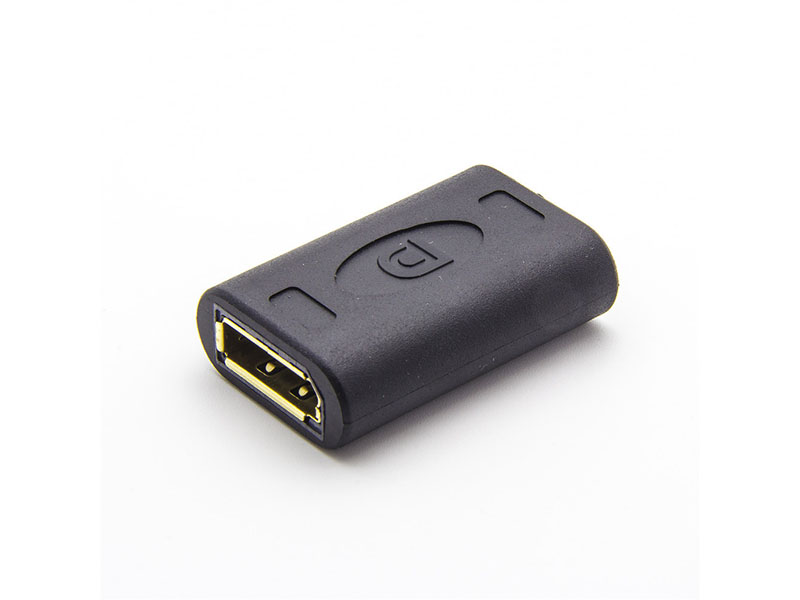

DP female to DP female adapter
描述
The DP female-to-DP female adapter is a product with clear positioning and stable demand. Its function may seem simple – connecting two DP male cables together, but in practical engineering and daily use, it addresses high-frequency pain points such as “insufficient cable length” or “incorrect interface position”. The following analysis is based on product features and core usage scenarios.
The core feature of the product is a DP female-to-female adapter, with both ends being standard DisplayPort female connectors. It is a passive coupler, and its core function is “bridging and extending”. Unlike active signal converters, it does not change the signal protocol, but simply physically connects two DP cables, allowing the total length to be extended.
The specifications are clearly categorized. The mainstream products on the market are divided into two versions: DP 1.2 and DP 1.4. The DP 1.2 version supports outputs ranging from 1080P to 4K@30Hz, meeting basic office and presentation needs; the DP 1.4 version can achieve up to 8K@60Hz, supports HBR3 and DSC, and is targeted at high-end audio-visual engineering. When exporting for wholesale, it is necessary to clearly label the version according to the target market to avoid customer complaints.
Passive design, no power supply required. The adapter is powered by the DP interface itself, allowing for plug-and-play functionality without the need for an external power supply or driver. This feature is particularly important for system integrators, as it eliminates the need to reserve additional power points during deployment.
Signal retention capability. High-quality products utilize gold-plated contacts and fully shielded metal enclosures to reduce signal attenuation and electromagnetic interference. However, it should be noted that passive couplers do not amplify signals themselves, and their stability depends on the quality of the backend cables and whether the total length falls within the DP specification allowance.
Portable design. Typical dimensions are approximately 40×26×12mm, featuring a black one-piece molded shell that is lightweight and durable. Some factories can provide panel mounting versions with screw holes to meet fixed installation requirements.
DisplayPort is a new generation of image display interface. The product is equipped with a built-in conversion chip that can convert DisplayPort signals into VGA signals. VGA supports resolutions up to 1920 x 1200 and supports 1080P.
Product Features: * Supports resolutions up to 1080p, 1920 x 1200, reducing the occurrence of blanking in transmitted video resolution signals; * Signal source directly reads the EDID of the display; * Disperses the spectrum to reduce electromagnetic interference; * Supports automatic detection at the receiving end; * Receives power and other devices (3.3V) from DisplayPort sources; * Low voltage operation – working mode 1.4W; standby mode 100mW; * Uses dispersed spectrum to prevent electromagnetic interference; Product Specifications: * Video input signal: 5Volts p-p (TTL) * Maximum signal connection range up to 1920×1200, 1080p * Video amplifier bandwidth: 154MHz/144MHz * Input and output interfaces: Input: DisplayPort male head 20pin; Output: VGA 15PIN female head; RGB analog video * Color: Black Convenience: Perfect lossless signal, plug and play Effect: High-quality, high-definition, fine and detailed, excellent effect Quality inspection: All products undergo high-standard 5-step quality inspection to minimize the rate of defective products.
